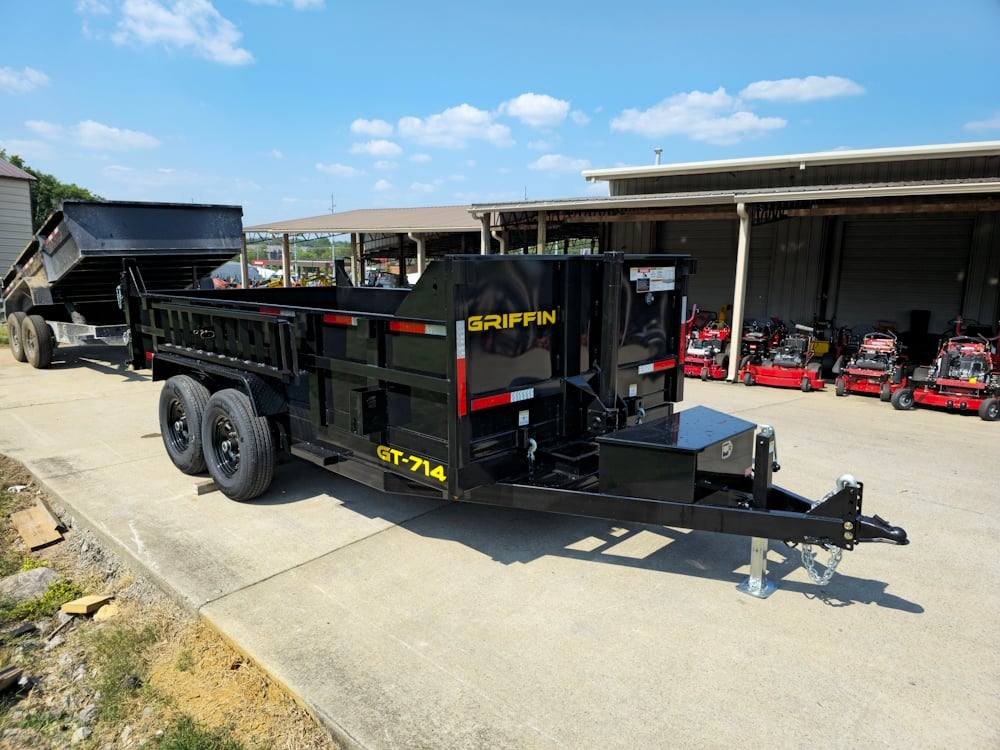

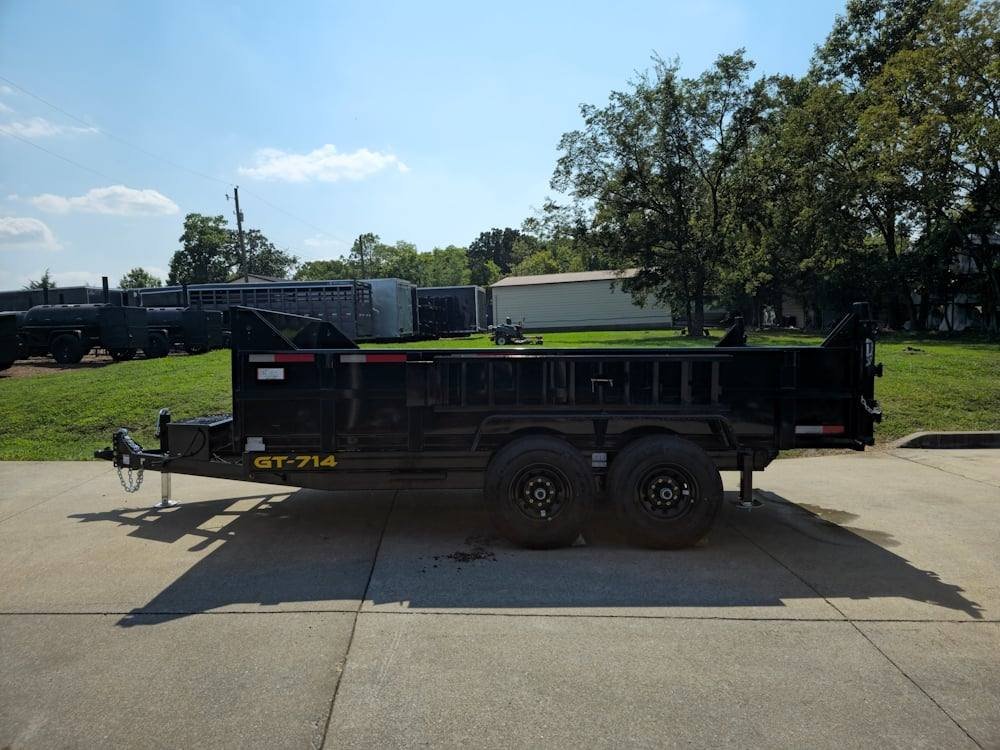

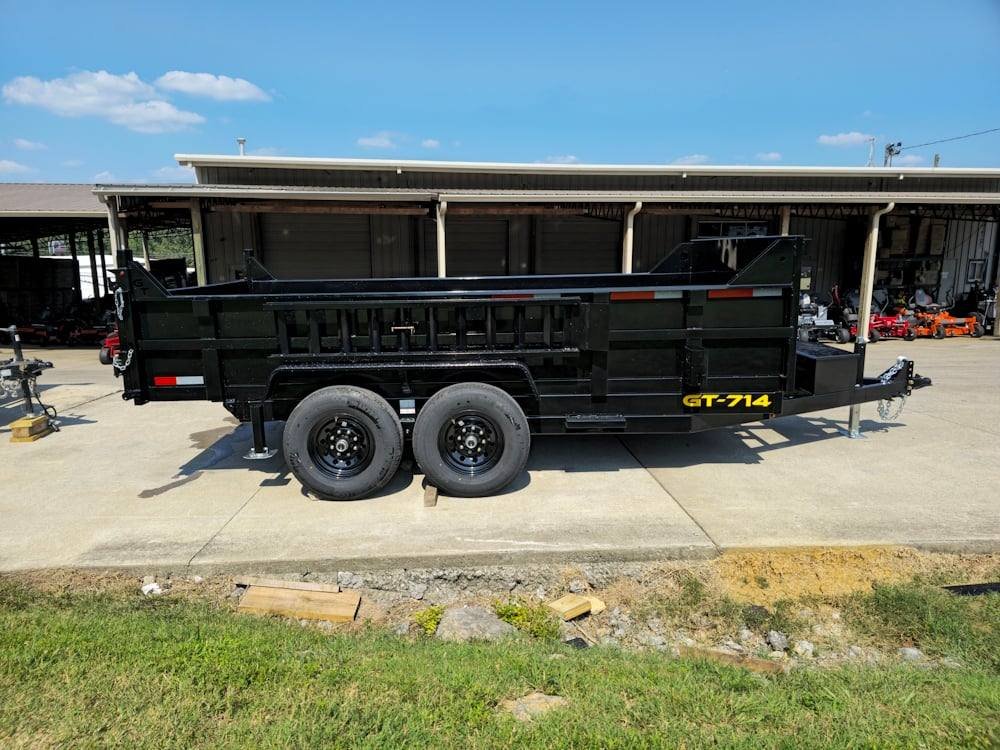

7×14 Telescopic Dump Trailer with 2ft Sides (2) 7K Axles

Engineered for the most demanding excavation and demolition environments, this 7×14 Telescopic Dump Trailer represents the pinnacle of hydraulic lifting architecture. Unlike traditional scissor hoists, the front-mount telescopic cylinder acts as a high-integrity mechanical force multiplier, pushing the bed from the strongest point to achieve maximum leverage. Supported by a dual 7,000 lb Axle architecture, this unit provides a formidable 14,000 lb GVWR, designed to neutralize the ‘abuse’ of high-density material transport. With 2-foot reinforced sides, this trailer offers a low-profile ‘intake’ for easier side-loading while maintaining the Max. Pressure performance required for a Long Life of heavy-duty operational flow.

Features:

• The length of the trailer is 14 feet (168 inches), providing extended space for larger loads.

• The sidewall height is 24 inches, offering substantial depth for carrying materials.

• The width is 7 feet (82.5 inches), giving a broad loading area.

• The floor height is 29 inches, allowing for convenient loading and unloading.

• The coupler height is 18 inches, ensuring compatibility with a variety of towing vehicles.

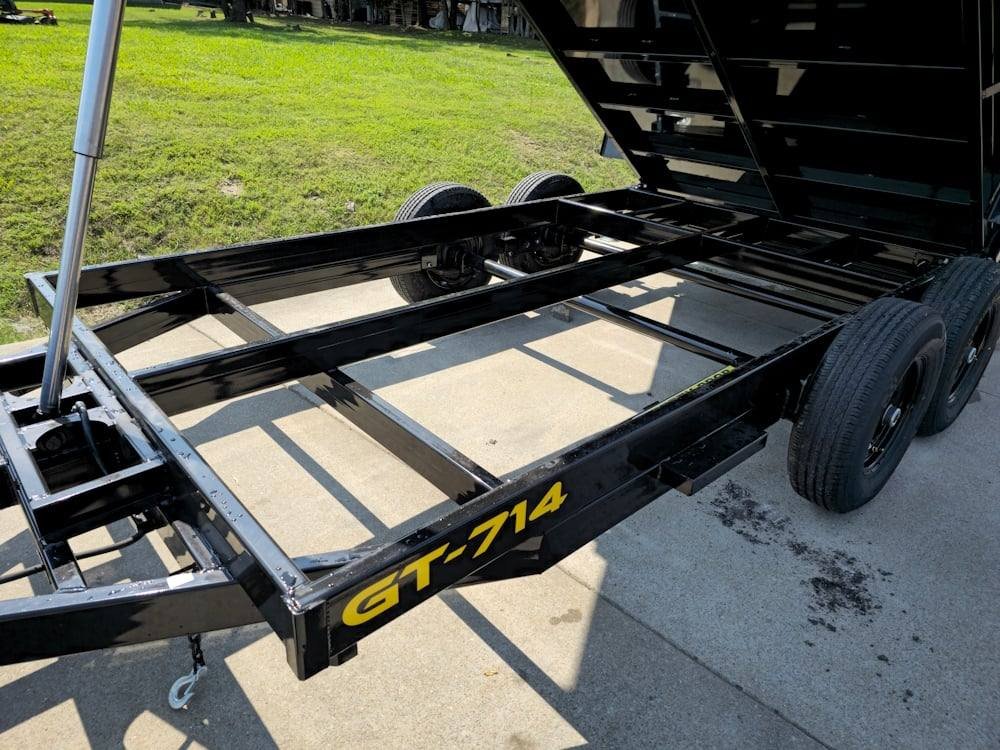

• The cross members are made from 2″ x 3″ tubes and are spaced 16 inches on center, providing structural reinforcement.

• The wheels feature a black powder coat finish, offering durability and corrosion resistance.

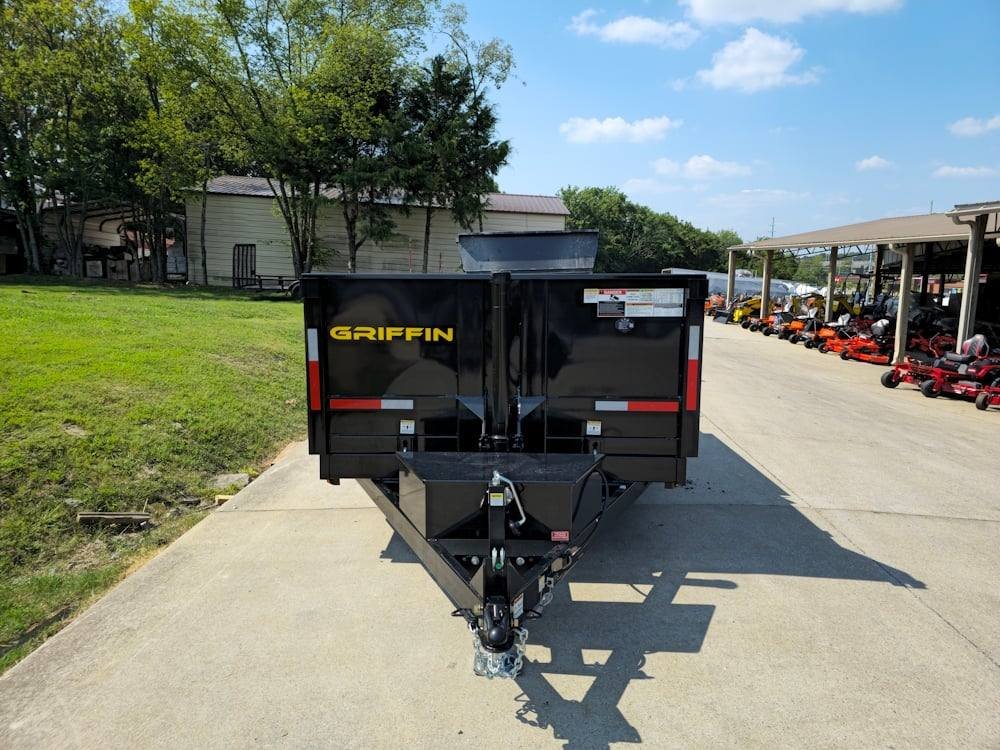

• The coupler is a 2-5/16″ adjustable coupler, allowing for versatile towing setups.

• The tires are 16-inch radial, providing stability and smooth performance.

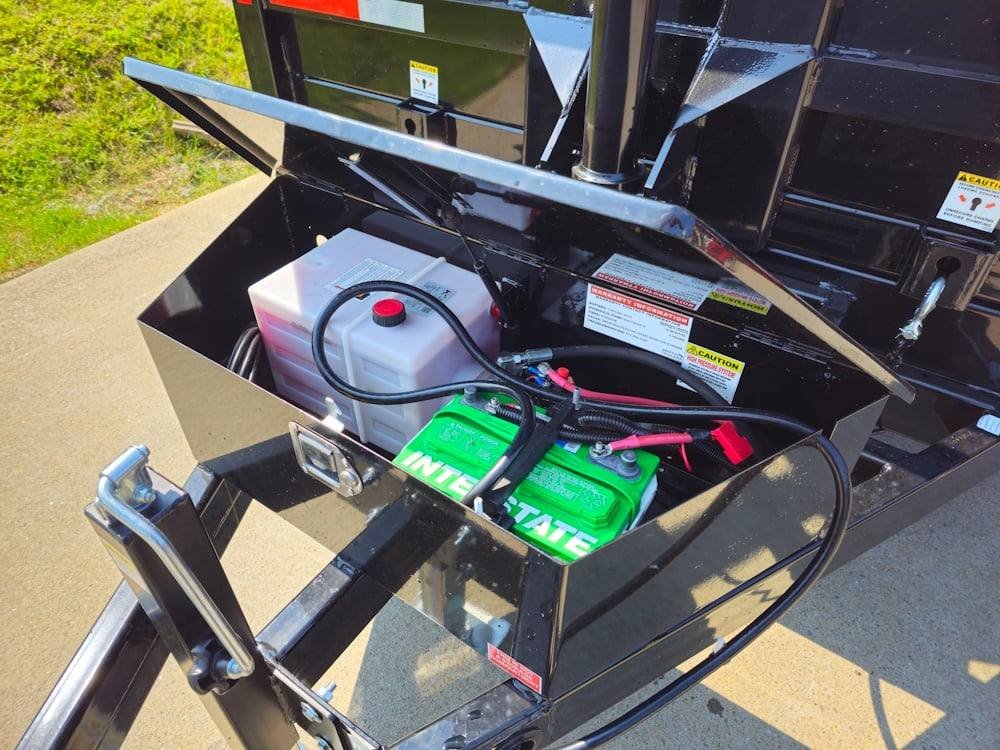

• 12v DC Hydraulic Pump – (3200 PSI Pwr Up) (0 PSI Pwr Down)

• The trailer includes a standard spare tire mount, keeping the spare easily accessible.

• The battery is an Interstate deep cycle marine battery, offering dependable power.

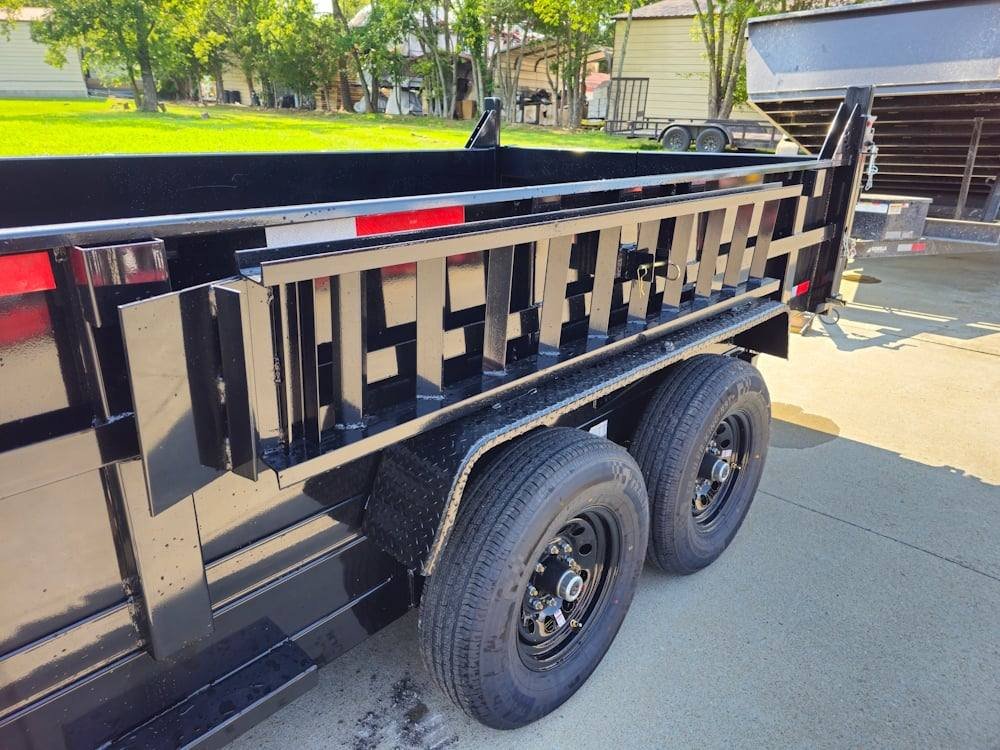

• The ramps are 80-inch C-channel fender-mounted ramps, simplifying loading and unloading tasks.

• The jack is an adjustable 7000lb top wind drop leg, ensuring easy height adjustment and stability.

• The lighting system includes amber and red LED lights, enhancing visibility and safety.

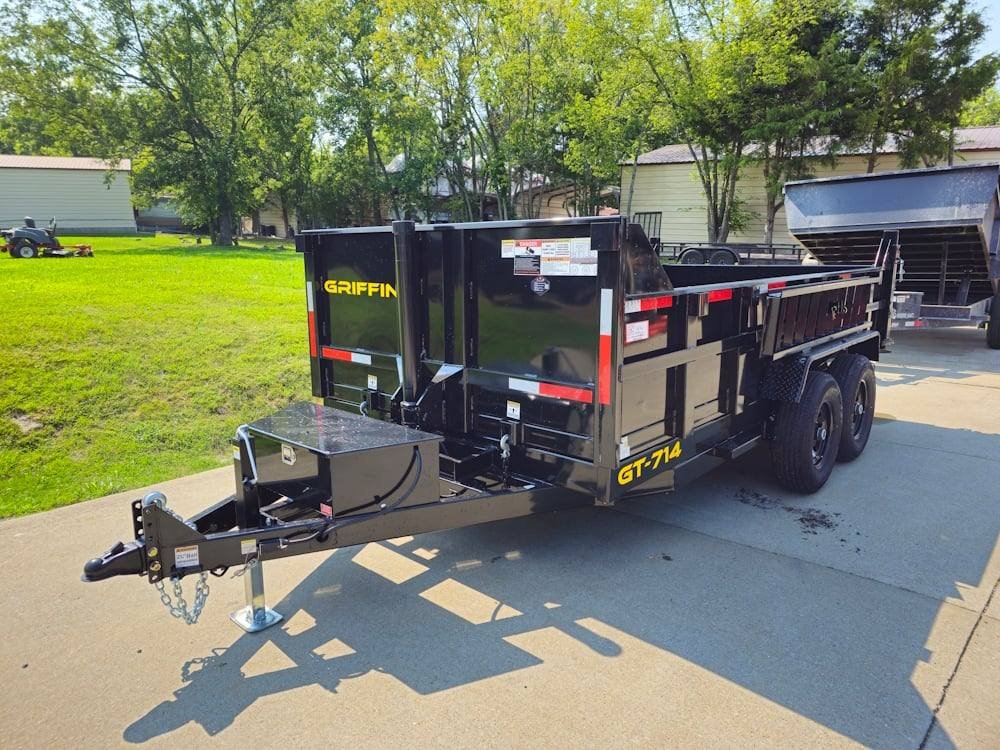

• The control box features a key lock for easy front access, ensuring security and ease of use.

• The wiring harness is a 3-piece plug-and-play system, simplifying electrical connections.

• The fenders are made from 14-gauge formed treadplate, providing protection from road debris.

• The electric plug is a 7-pin round connector, standard for trailer hookups.

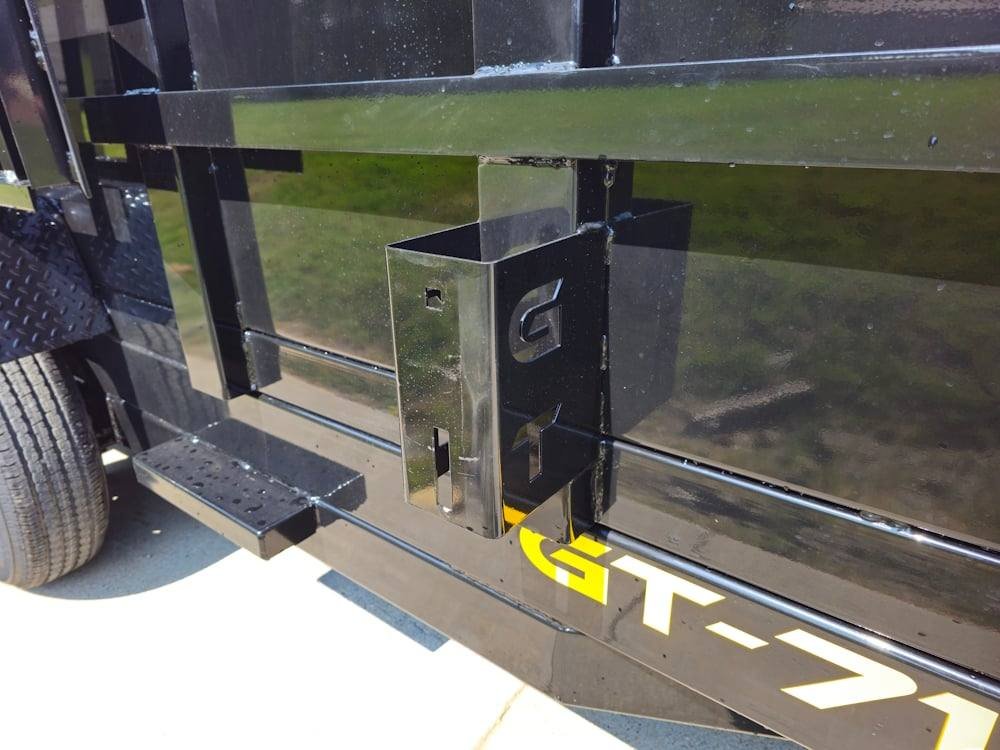

• The stake pockets are made from 2″ x 4″ tubes, providing secure tie-down points for cargo.

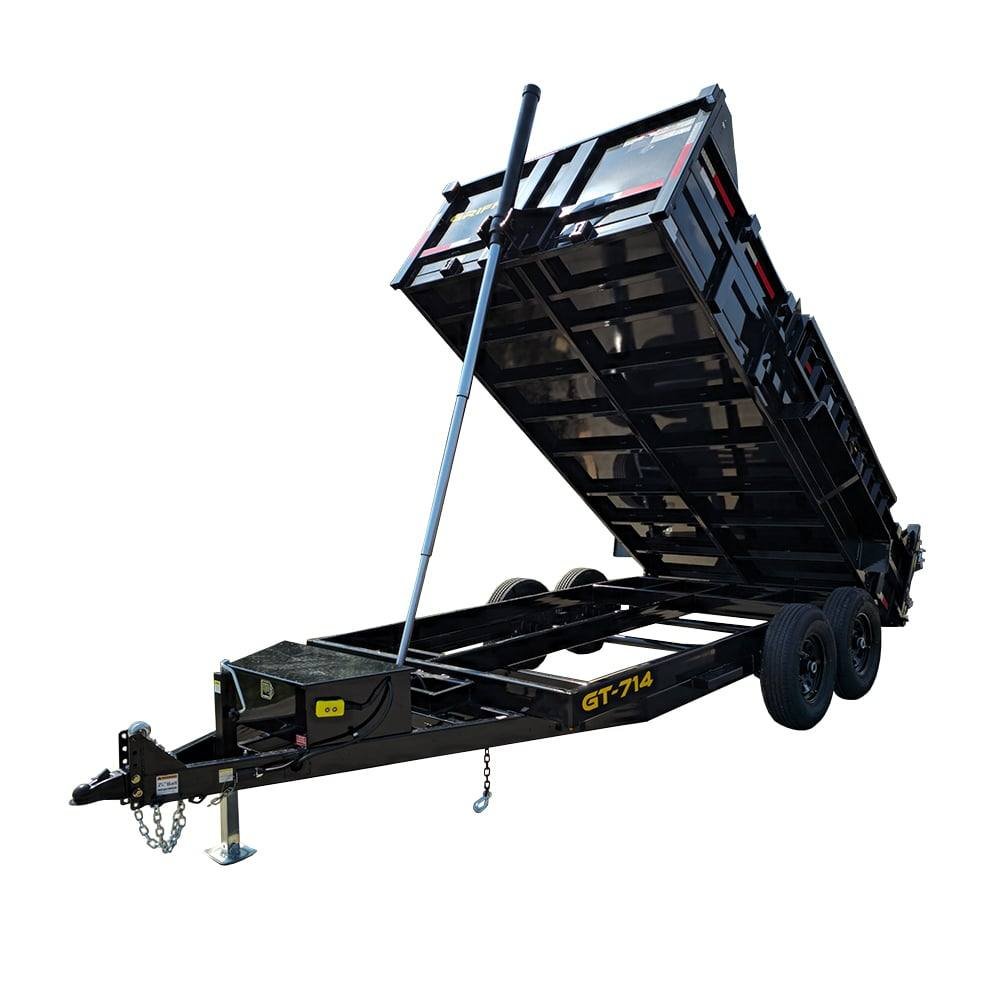

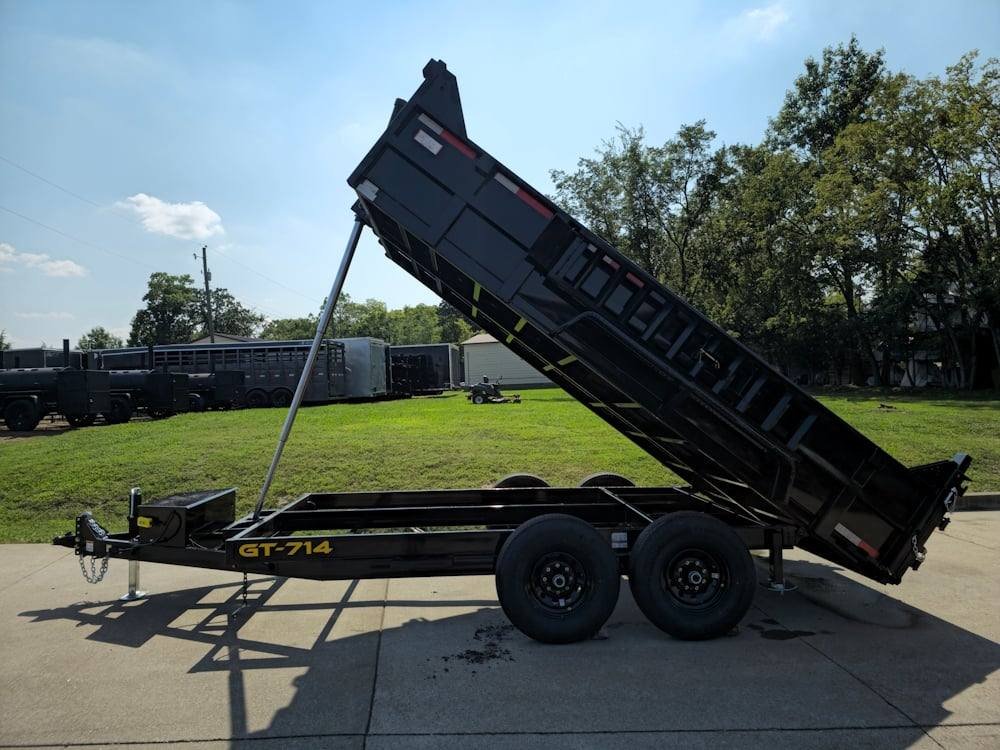

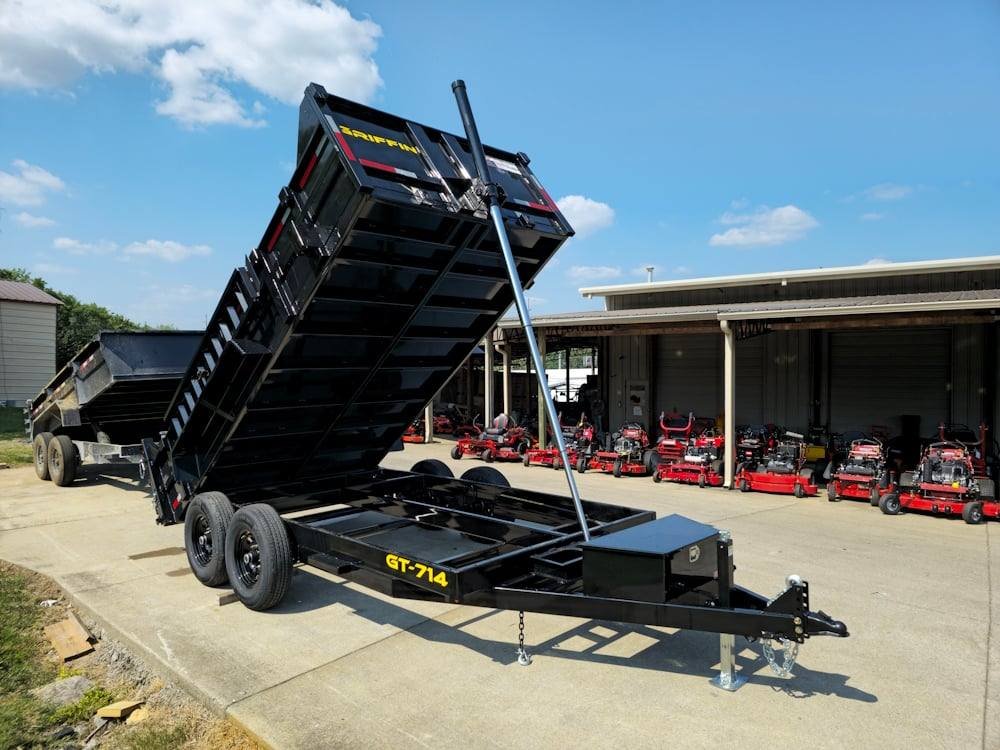

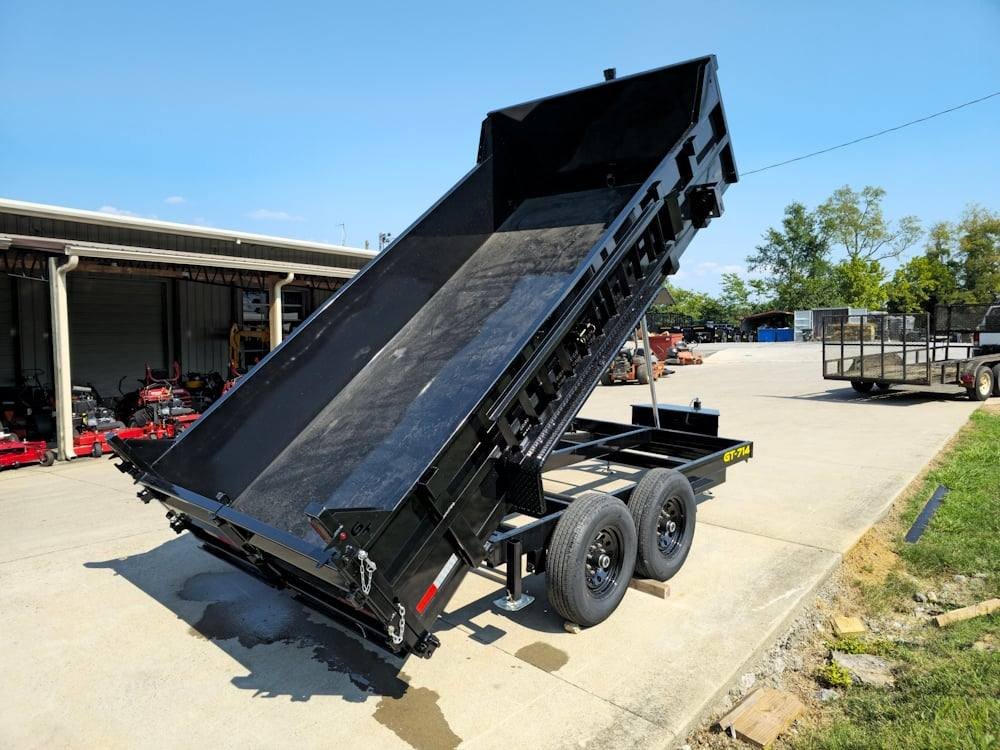

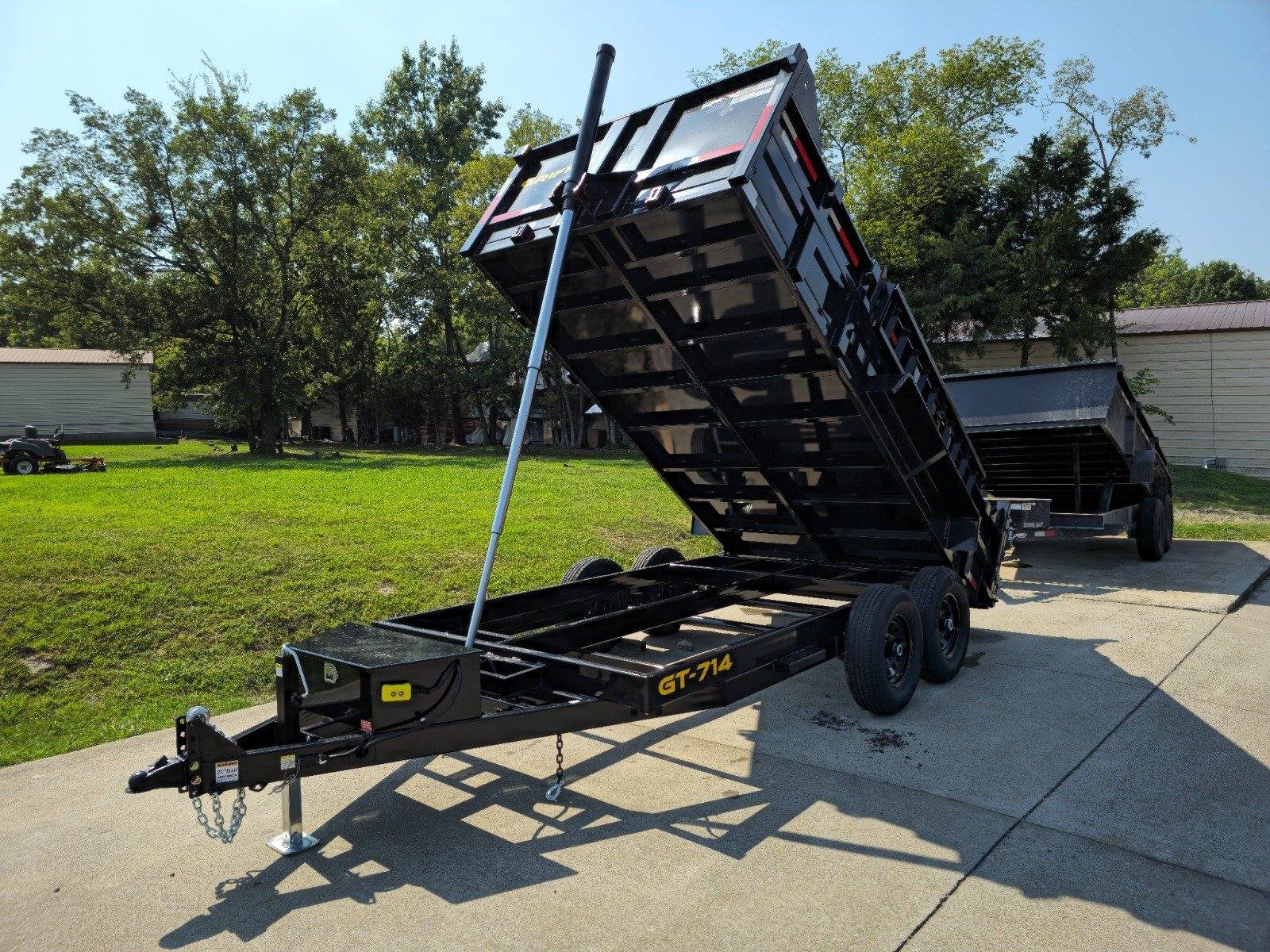

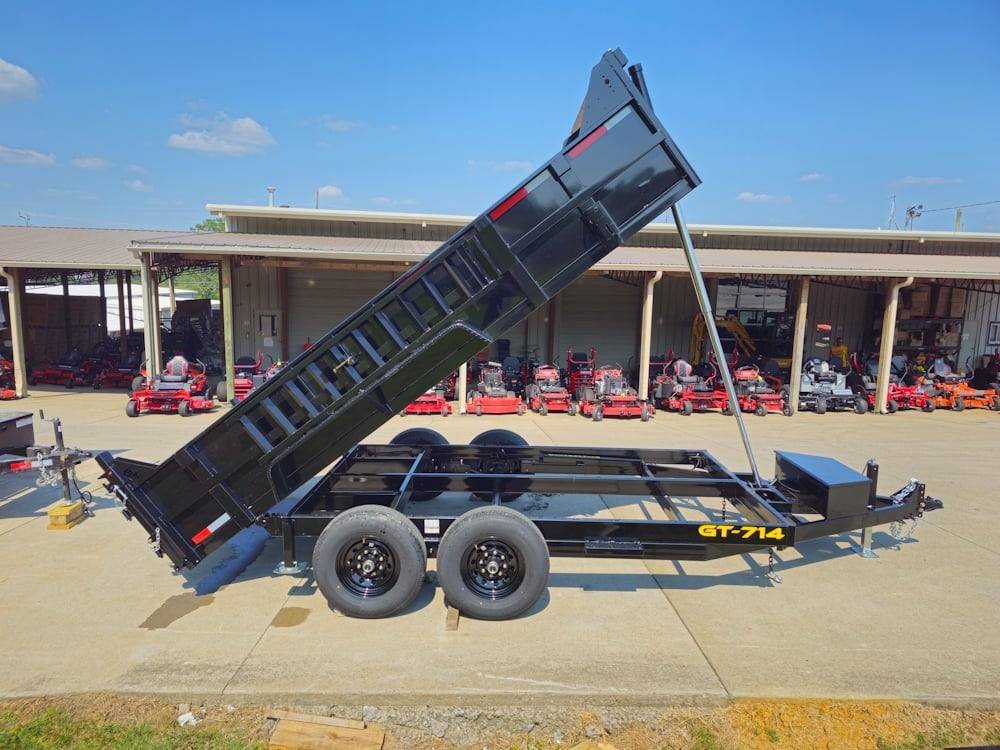

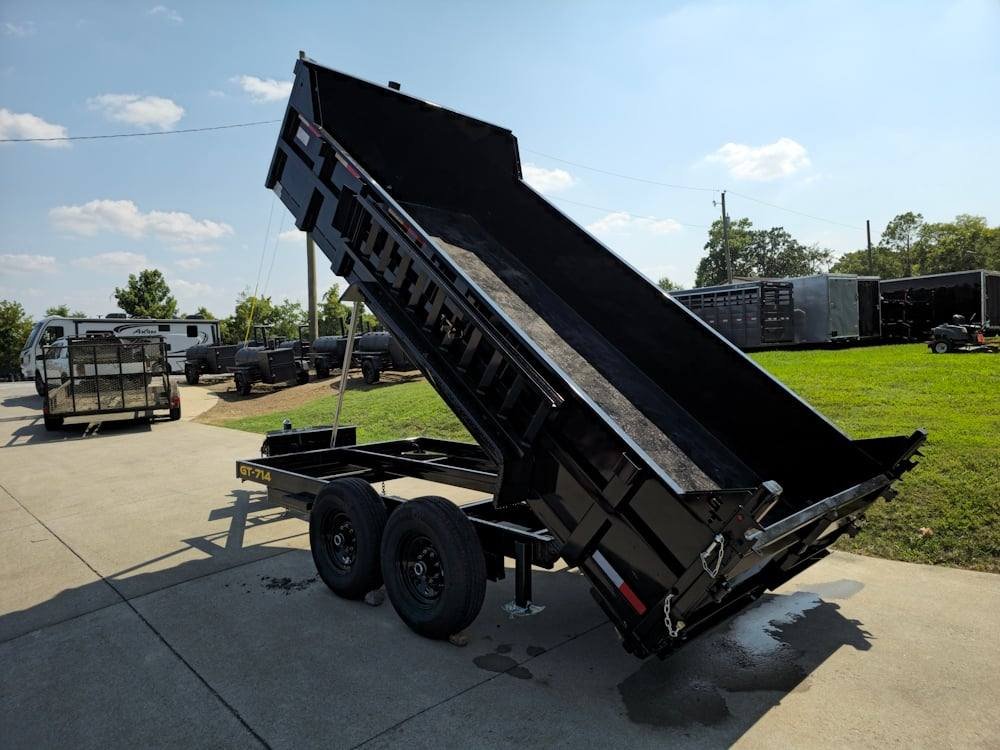

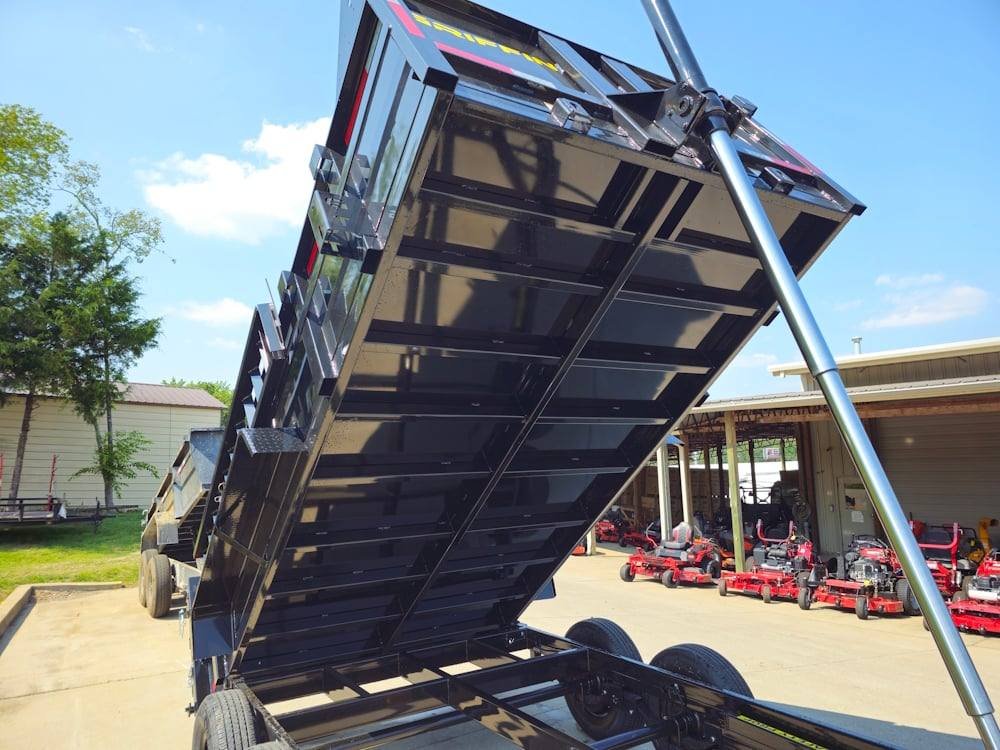

• The lift system is a 3-stage telescoping mechanism, allowing for efficient lifting capabilities.

• The gussets at the front and rear measure 2″ x 12″, allowing for wall extensions and additional strength.

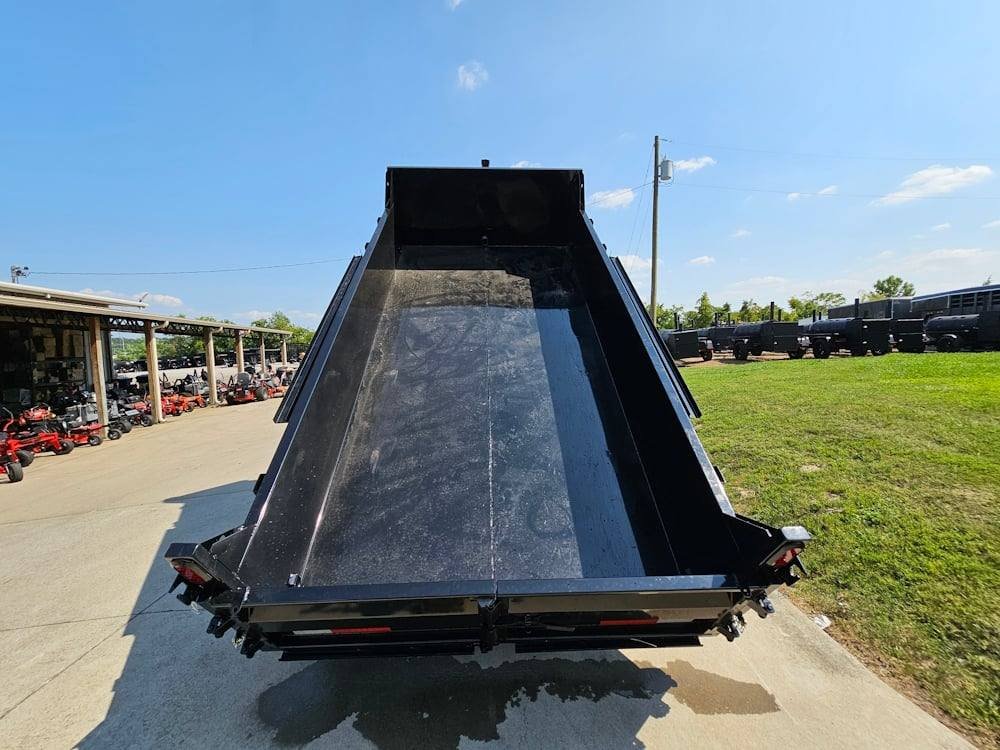

• The floor and walls are constructed from 10-gauge smooth steel, ensuring durability.

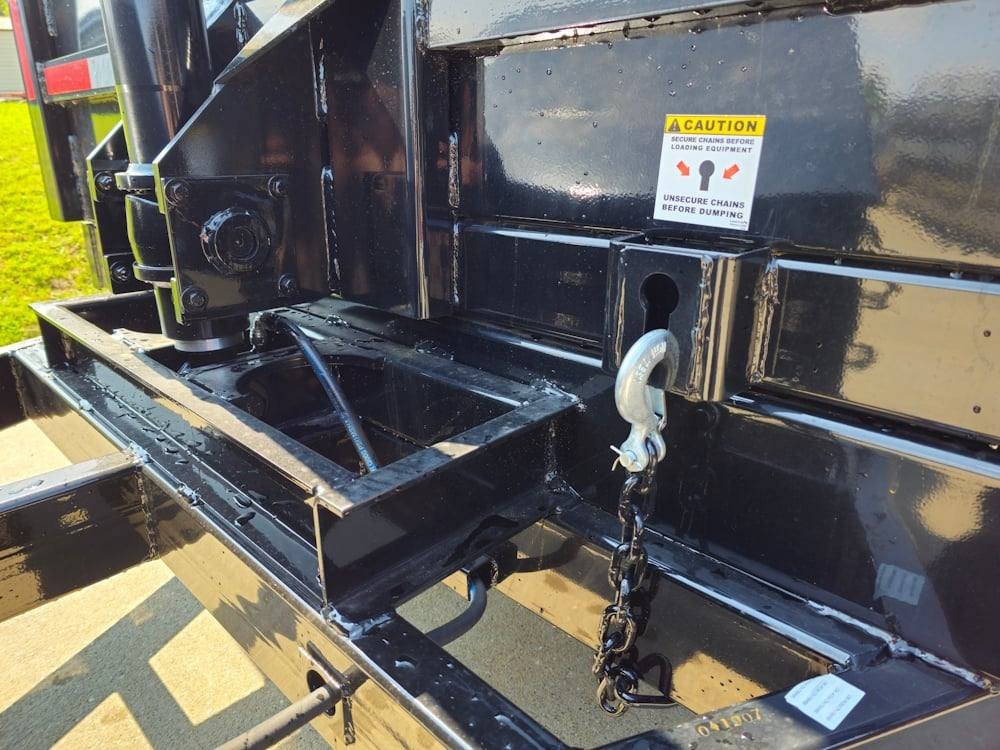

• The safety chains are two forged slip hooks measuring 5/16″ x 35″, with a 11700lb capacity, ensuring safe towing.

• The trailer includes five 5000lb D-rings, which are welded into the floor for cargo tie-downs.

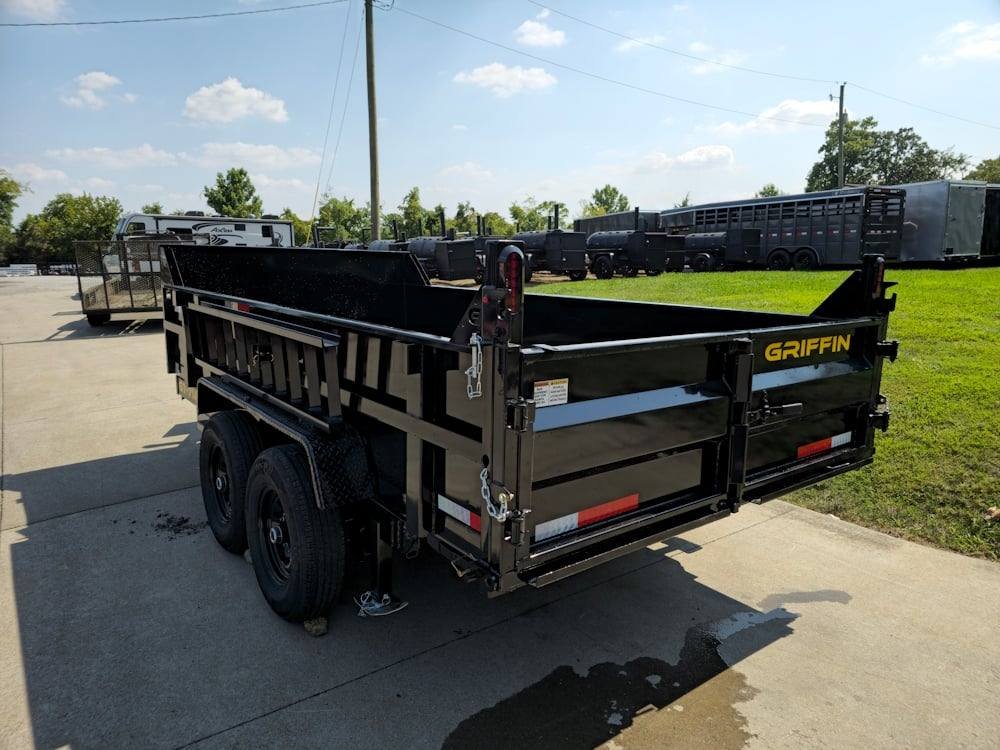

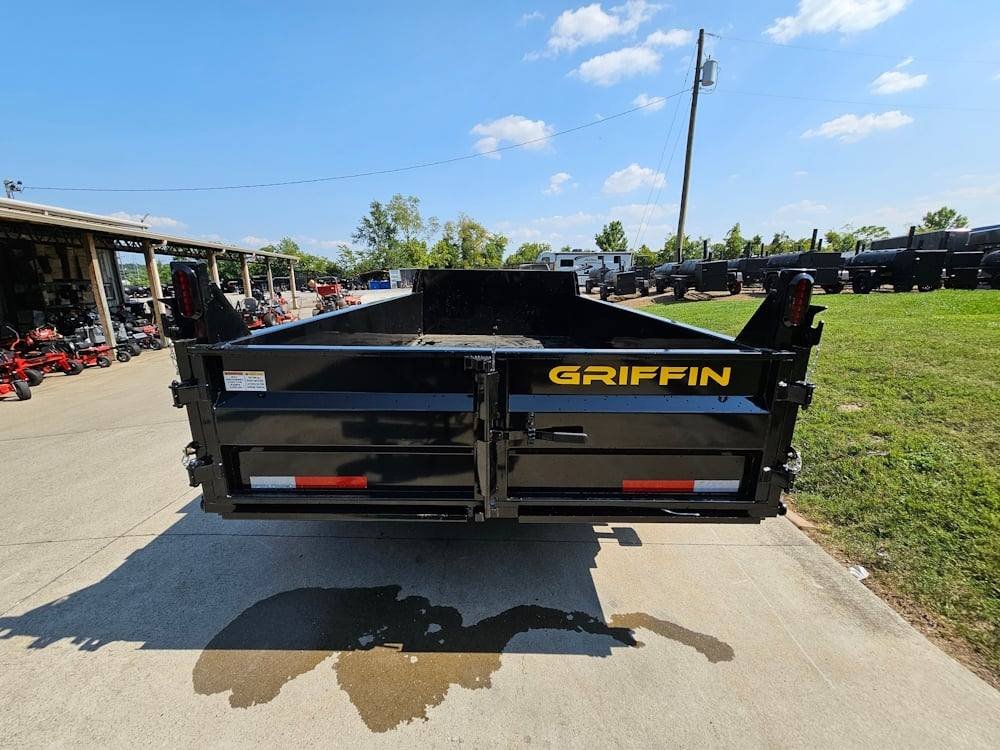

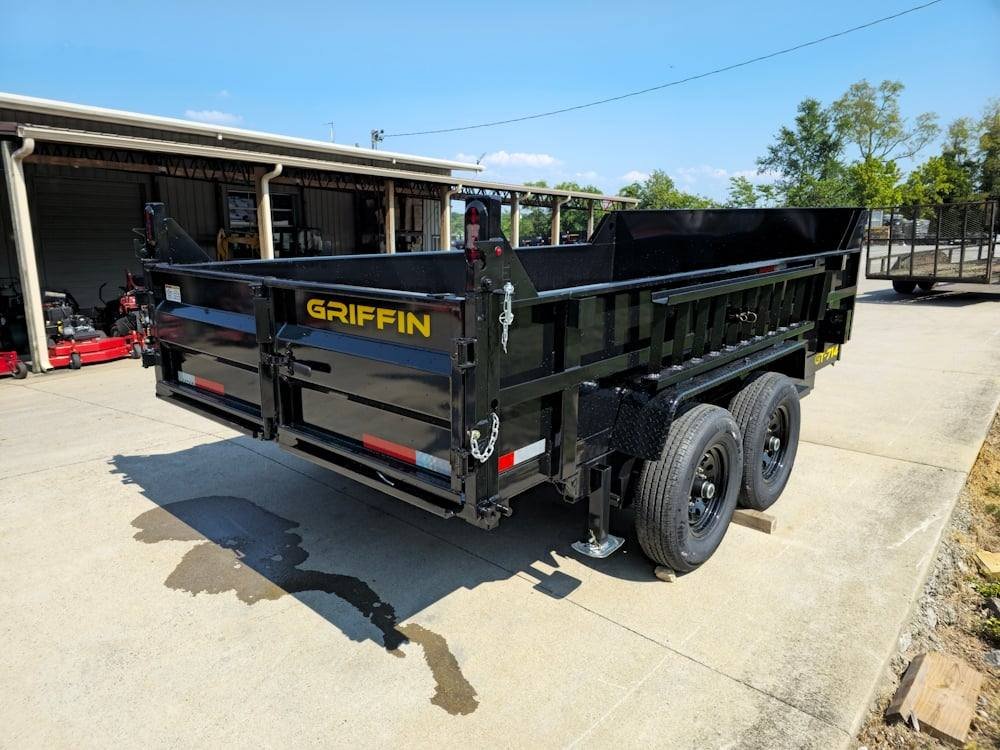

• The rear gate is a 2-way combination spreader/barn gate, providing flexible unloading options.

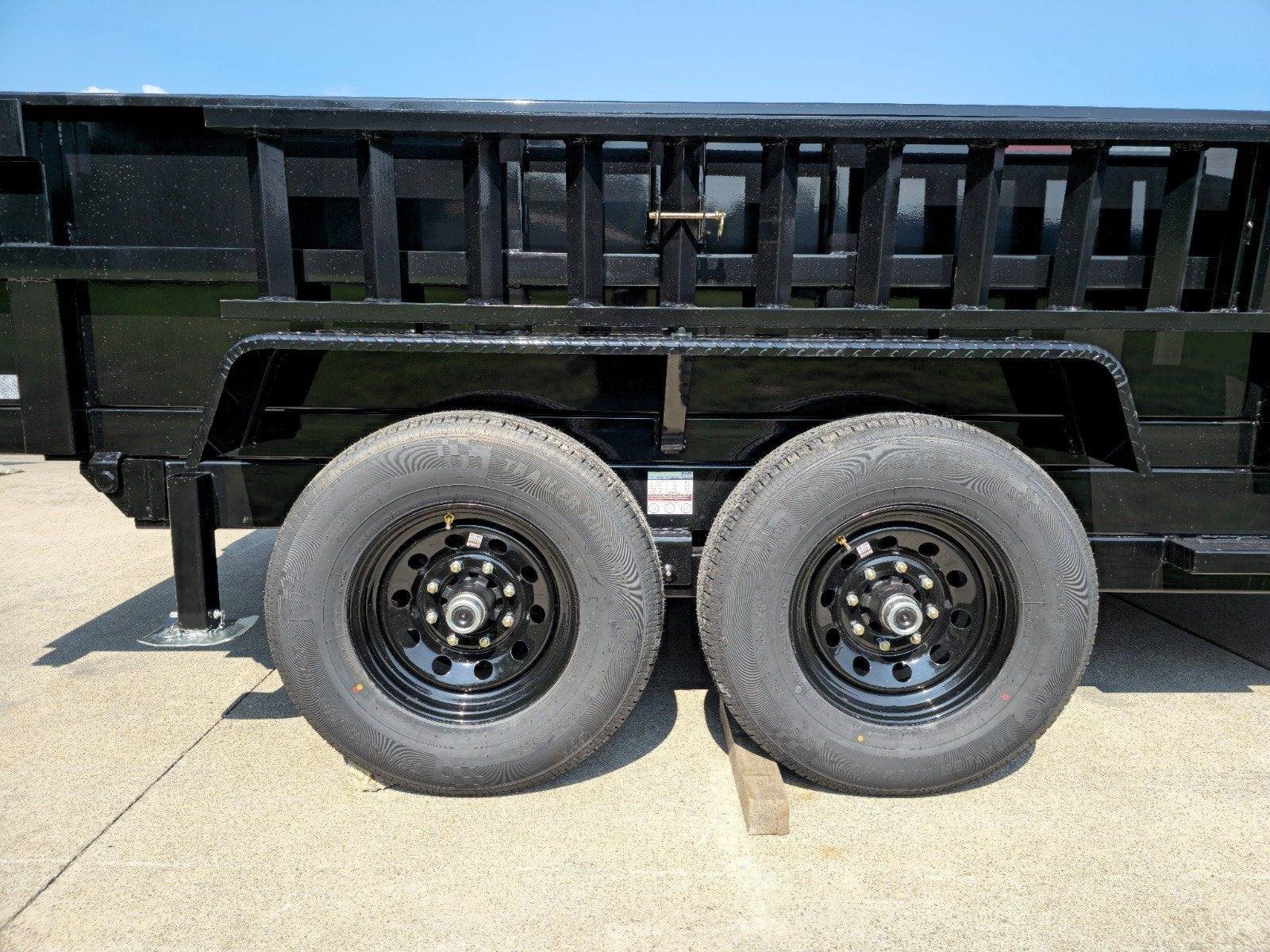

• The axles are tandem EZ lube axles with galvanized components, providing durability and low maintenance.

• The paint finish is a high gloss black powder coat, giving the trailer a protective and sleek appearance.

• The suspension is an equalized leaf spring system, ensuring a smooth ride on rough terrain.

• The style of the trailer is Low-Pro, offering a lower center of gravity for enhanced stability.

• The overall length of the trailer is 222 inches, making it ideal for larger loads.

• The GVWR (Gross Vehicle Weight Rating) is 14,000 pounds, ensuring it can handle heavy loads.

• The GAWR (Gross Axle Weight Rating) is 7000 pounds, providing a strong weight-bearing capacity on each axle.

• The curb weight of the trailer is 3904 pounds, providing a sturdy yet manageable weight.

• The tongue is constructed from 2″ x 5″ steel tubing, offering strength and durability.

• The payload capacity is 10,096 pounds, allowing for heavy material transport.

• The estimated tongue weight is 580 pounds, ensuring stability during towing.

• The dump capacity is 10,000 pounds, making it suitable for large and heavy dumping tasks.
